Slate Landscape Tiles

Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile Slate Landscape Tile

The look and feel of Slate is so authentic, it will be
adored by you, admired by family and envied by neighbors.

Our latest addition to Silver Creek’s Slate™ landscape tiles is a large format 24 x 36” tile.  Cast in molds from multiple hand-crafted originals, new Slate Xl matches the surface and edge detail as all slate sizes. Because all Silver Creek landscape tiles are manufactured to consistent dimensions, they create beautiful patios, boulevards and paths and lay faster and more economically than natural stone.


Specifications

Type Size L x W (in) Thickness (in) Face Area (ft²) Unit Weight (lbs) Units per Pallet Square Feet per Pallet Weight per Pallet (lbs)
NEW
SLATE XL
24 x 36 1.50 6 106 16 96 1,736
Small Square 12 x 12 1.50 1 19 48 48 928
Medium Square 18 x 18 1.50 2.25 43 24 54 1072
Rectangle 24 x 12 1.50 2 38 24 48 952
Large Square 24 x 24 1.50 4 77 24 96 1,888
Bullnose 14 x 14 1.50 1.36 25 24 32.66 640
Complete specifications, testing, CAD details..

See residential use warranty.   See commercial use warranty.   Made in Minnesota.

Color

Cream

Color blend of White and Sandstone.

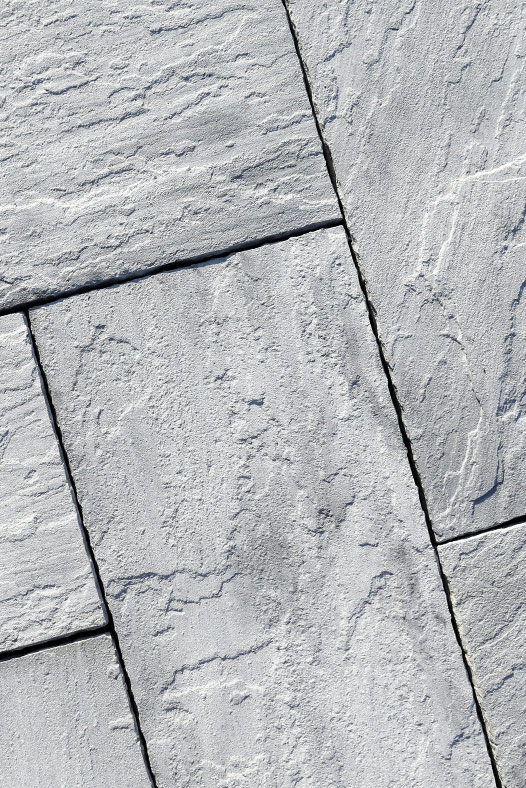

Bluestone

Color blend of Charcoal, Light Charcoal, and Gray.

Fond du Lac

Color blend of Gray, Charcoal, and Sandstone.

Western Buff

Color blend of Sandstone and Brown.

Patterns

Slate Landscape Tile Laying Pattern

Slate Pattern 1

12 x 12 = 19% (3, Small Squares)
18 x 18 = 29% (2, Medium Squares)
24 x 12 = 26% (2, Small Rectangles)
24 x 24 = 26% (1, Large Square)
Slate Landscape Tile Laying Pattern

Slate Pattern 2

12 x 12 = 14% (2, Small Squares)
24 x 12 = 29% (2, Small Rectangles)
24 x 24 = 57% (2, Large Squares)
Slate Landscape Tile Laying Pattern

Slate Pattern 3

24 x 24 = 100% (1, Large Square)
Slate Landscape Tile Laying Pattern

Slate Pattern 4

12 x 12 = 14% (1, Small Square)
24 x 12 = 29% (1, Small Rectangle)
24 x 24 = 57% (1, Large Square)
Slate Landscape Tile Laying Pattern

Slate Pattern 5

12 x 12 = 7.69% (1, Small Square)
24 x 12 = 15.39% (1, Small Rectangle)
24 x 24 = 30.77% (1, Large Square)
24 x 36 = 46.15% (1, Large Rectangle)
Slate Landscape Tile Laying Pattern

Slate Pattern 6

12 x 12 = 11.11% (4, Small Squares)
24 x 12 = 11.11% (2, Small Rectangles)
24 x 24 = 44.44% (4, Large Squares)
24 x 36 = 33.33% (2, Large Rectangles)
Slate Landscape Tile Laying Pattern

Slate Pattern 7

12 x 12 = 25% (4, Small Squares)
24 x 12 = 50% (4, Small Rectangles)
24 x 24 = 25% (1, Large Square)
Slate Landscape Tile Laying Pattern

Slate Pattern 8

12 x 12 = 11.2% (1, Small Square)
24 x 12 = 44.4% (2, Small Rectangles)
24 x 24 = 44.4% (1, Large Square)

Design Ideas

Click on the main photo to see downloadable full size image.

Resources

Technical Details
File Name
Download Link
Slate Cut Sheet
PDF
Specifications
PDF
PSI Testing Information
PDF
Product Information Overview
PDF
Solar Reflectance Test
PDF
Order Form
PDF
CAD Drawings
File Name
Download Link Download Link
All Drawings (zipped)
PDF
DWG
Bituminous Set for Sidewalks
PDF
DWG
Concrete Base Detail
PDF
DWG
Fountain
PDF
DWG
Patio on Aggregate Base
PDF
DWG
Patio / Driveway with Toweled Concrete Edge Restraint
PDF
DWG
Pedestrian Roof Deck with Drainage Mat 1
PDF
DWG
Pedestrian Roof Deck with Drainage Mat 2
PDF
DWG
Pedestrian Set for Roof Decks
PDF
DWG
Sidewalk on Existing Concrete
PDF
DWG
Roof Deck
PDF
DWG
Roof Deck on Mortar Setting Bed
PDF
DWG
Sidewalk on Concrete Base
PDF
DWG
Concrete Slab
PDF
DWG
Step Detail
PDF
DWG
Swimming Pool Deck and Coping
PDF
DWG
